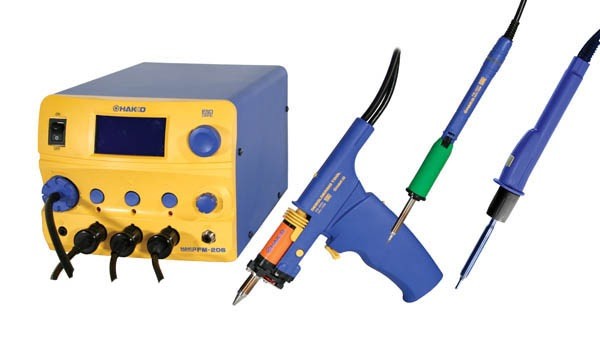

Máy hàn thiếc Hakko FM206

Máy hàn thiếc Hakko FM206 - Trạm hàn thiếc Hakko FM-206, máy hàn linh kiện điện tử Hakko, máy hàn nhựa thông Hakko nhật bản
Model No.     FM-206
Power consumption     410W (Max.)
Temperature range     FM-2026/2027：200 to 450ºC
FM-2022/2023：200 to 400ºC
FM-2024：350 to 450ºC
FM-2029：100 to 550ºC
FM-2030：200 to 500ºC
FM-2031：200 to 500ºC
FM-2032：200 to 450ºC
Temperature stability     ±5ºC at idle temperature

・Station
Output voltage     AC 24V
Vacuum generator     Vacuum pump, cylinder type
Vacuum pressure     80kPa (600mmHg) (Max.)
Suction flow     14L/min.
Air flow     6L/min. (Max.)
Dimensions     162(W)×136(H)×245(D)mm
Weight     6.2kg

・Soldering Iron
Power consumption     70W (24V)
Tip to ground resistance     <2Ω
Tip to ground potential     <2mV
Heating element     Composite heater
Cord length     1.2m
Total length     188mm (with 2.4D tip)
Weight     30g (with 2.4D tip)

・Desoldering Tool
Power consumption     70W (24V)
Nozzle to ground resistance     <2Ω
Nozzle to ground potential     <2mV
Heating element     Composite heater
Cord length     1.2m
Total length     180mm (with Φ1.0mm nozzle)
Weight     65g (with Φ1.0mm nozzle)

・Handpiece (Hot air) : for FM-206
Power consumption     140W (24V)
Nozzle to ground resistance     <2Ω
Nozzle to ground potential     <2mV
Heating element     Composite heater
Cord length     1.2m
Total length     232mm (with Φ4.0mm nozzle)
Weight     50g (with Φ4.0mm nozzle
